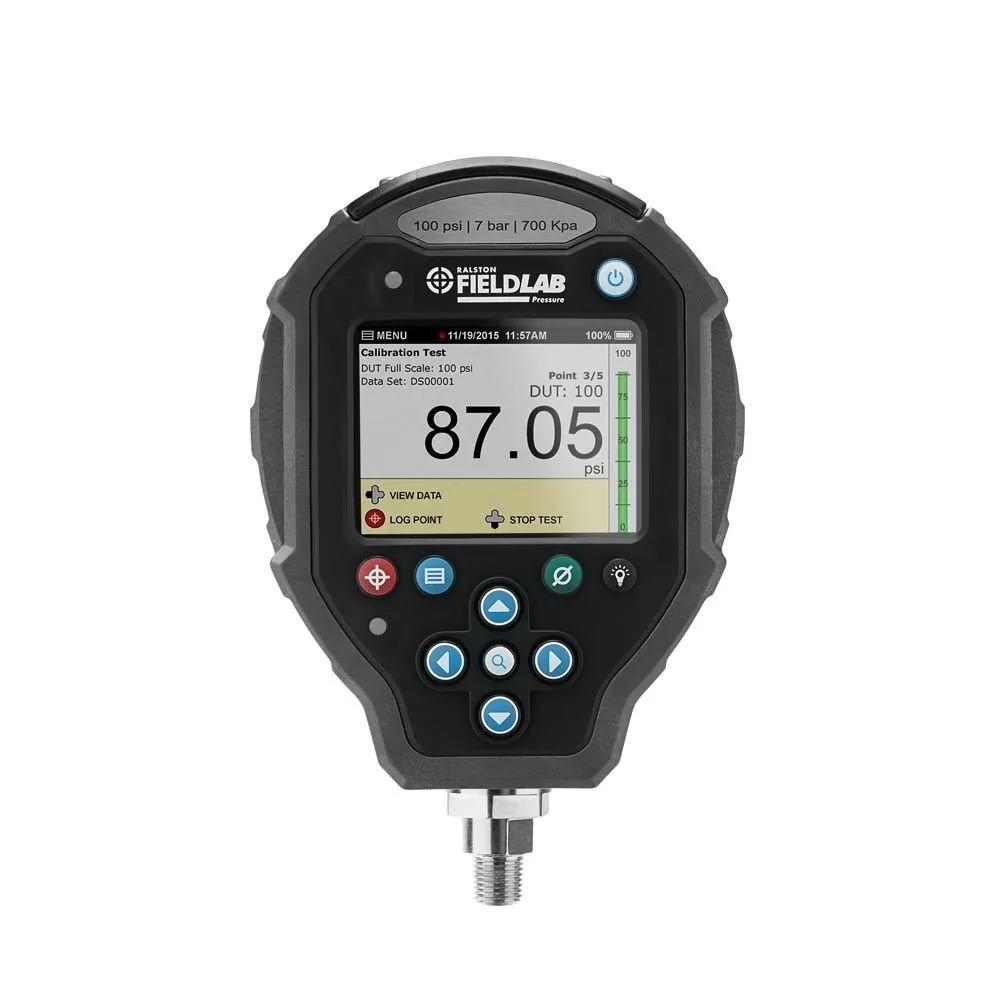

Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator

Overview Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator

Ralston Instruments FLP1-GV-2M FieldLab Pressure Calibrator is a Ralston FieldLab pressure calibrator designed for field calibration work. It supports pressure calibration work where a defined measurement range is required. Specified range: 10,000psi with accuracy 0.1% of Reading.

Features and Performance

- 10,000 PSI
- Speed through Calibration Tests using Easily Configurable Test Modes that give Users Prompts on what Pressure Test Points to Measure
- Continuous Pressure Testing with up to 2 Million Points Onboard Storage
- Includes Free FieldLab Desktop PC Software for Test Mode Setup, Configuration and Data Set Management (Windows 7 and Higher)
- Rechargeable Battery Life: 2 Months/Single Charge
- Min/Max Feature is Excellent for doing PSV Tests
- Class 1 Division 1 Intrinsically Safe
- ATEX and IECEx Zone 0 and CE Approved
- Accuracy: ±0.1% of Reading from 20%-100% of Full Scale ±0.02% of Full Scale from 0-20% of Full Scale
- ±0.1% of Reading from 20%-100% of Full Scale
- ±0.02% of Full Scale from 0-20% of Full Scale
- Vacuum: ±0.25% of Full Scale (ranges 300 PSI and lower)
- Operating Temperature: -10 to 50 °C (14 to 122 °F)
- Storge Temperature: -40 to 75 °C (-40 to 167 °F)
- LCD Display: 3.5 in / 90 mm Color TFT LCD Display
- Battery: Lithium Ion rechargeable (4.8 Ah Capacity)
- Wetted Material: 316 Stainless Steel
- Ingress Protection: IP67 (1 meter for 30 minutes)
- Data / Communication: USB Type B
- USB Cable: 2 meter (shielded)
- Bottom Connection: 1/4″ Male NPT
- NIST Traceable Calibration Certificate

Why Choose This Product

This model is relevant for pressure test and calibration work where a dedicated handheld instrument is preferred. The listed range supports applications centered on 10,000psi.

Product Specifications

Feature Details

Type FieldLab Pressure Calibrator

Range 10,000psi

Accuracy 0.1% of Reading
