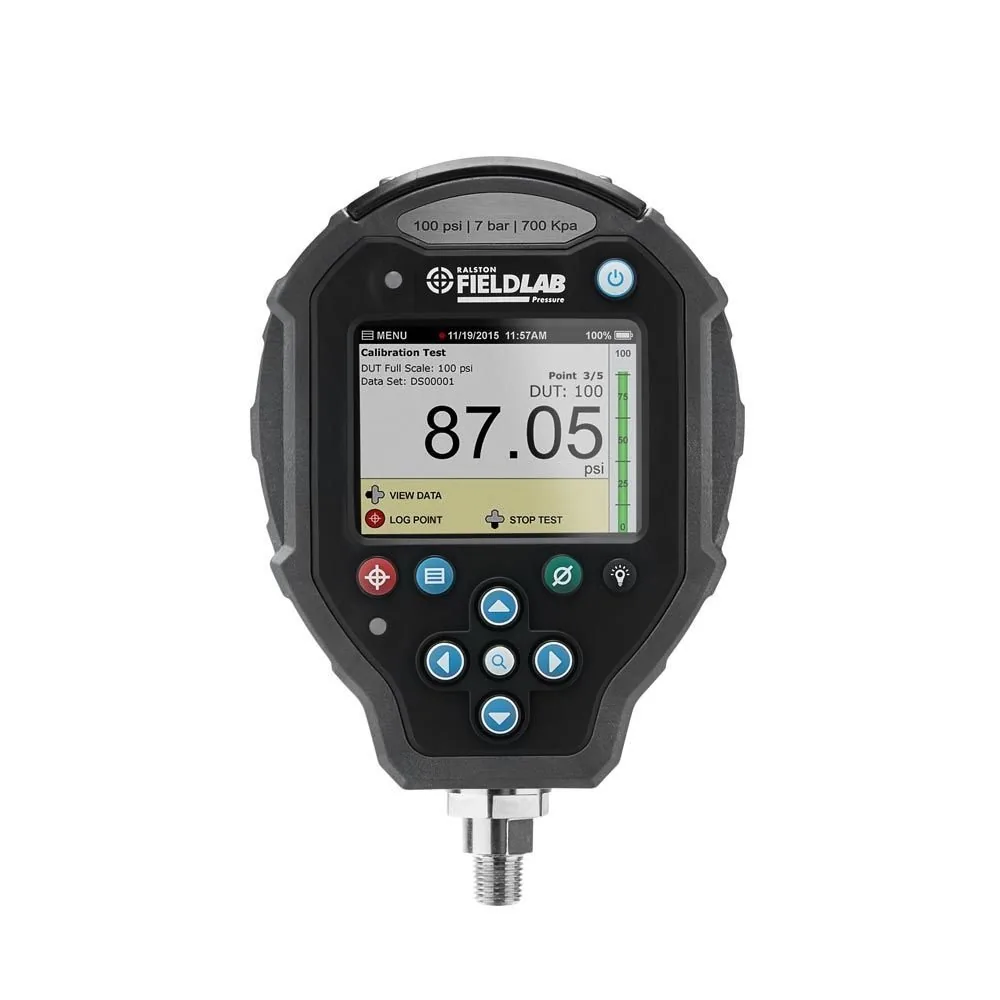

Ralston Instruments FLP1-GF-2M FieldLab Pressure Calibrator

Overview Ralston Instruments FLP1-GF-2M FieldLab Pressure Calibrator

Ralston Instruments FLP1-GF-2M FieldLab Pressure Calibrator is a fieldlab pressure calibrator from Ralston Instruments. It is built for field calibration work with configurable test modes, onboard data storage, and intrinsically safe approvals. The source data lists 30psi; Accuracy: ± 0.1% of Reading from 20%-100% of Full Scale ± 0.02% of Full Scale from 0-20% of Full Scale.

Features and Performance

- 30 PSI
- Speed through Calibration Tests using Easily Configurable Test Modes that give Users Prompts on what Pressure Test Points to Measure
- Continuous Pressure Testing with up to 2 Million Points Onboard Storage
- Includes Free FieldLab Desktop PC Software for Test Mode Setup, Configuration and Data Set Management (Windows 7 and Higher)
- Rechargeable Battery Life: 2 Months/Single Charge
- Min/Max Feature is Excellent for doing PSV Tests
- Class 1 Division 1 Intrinsically Safe
- ATEX and IECEx Zone 0 and CE Approved

Why Choose This Product

The combination of configurable test modes, long battery life, onboard storage, and hazardous-area approvals makes it suitable for field documentation and testing tasks. The supplied package includes NIST Traceable Calibration Certificate.

Product Specifications

Feature Details

Range 30psi

Accuracy Accuracy: ± 0.1% of Reading from 20%-100% of Full Scale ± 0.02% of Full Scale from 0-20% of Full Scale

Connection Bottom Connection: 1/4" Male NPT

Safety Rating Class 1 Division 1 Intrinsically Safe

Display LCD Display: 3.5 in / 90mm Color TFT LCD Display

Power Rechargeable Battery Life: 2 Months/Single Charge
