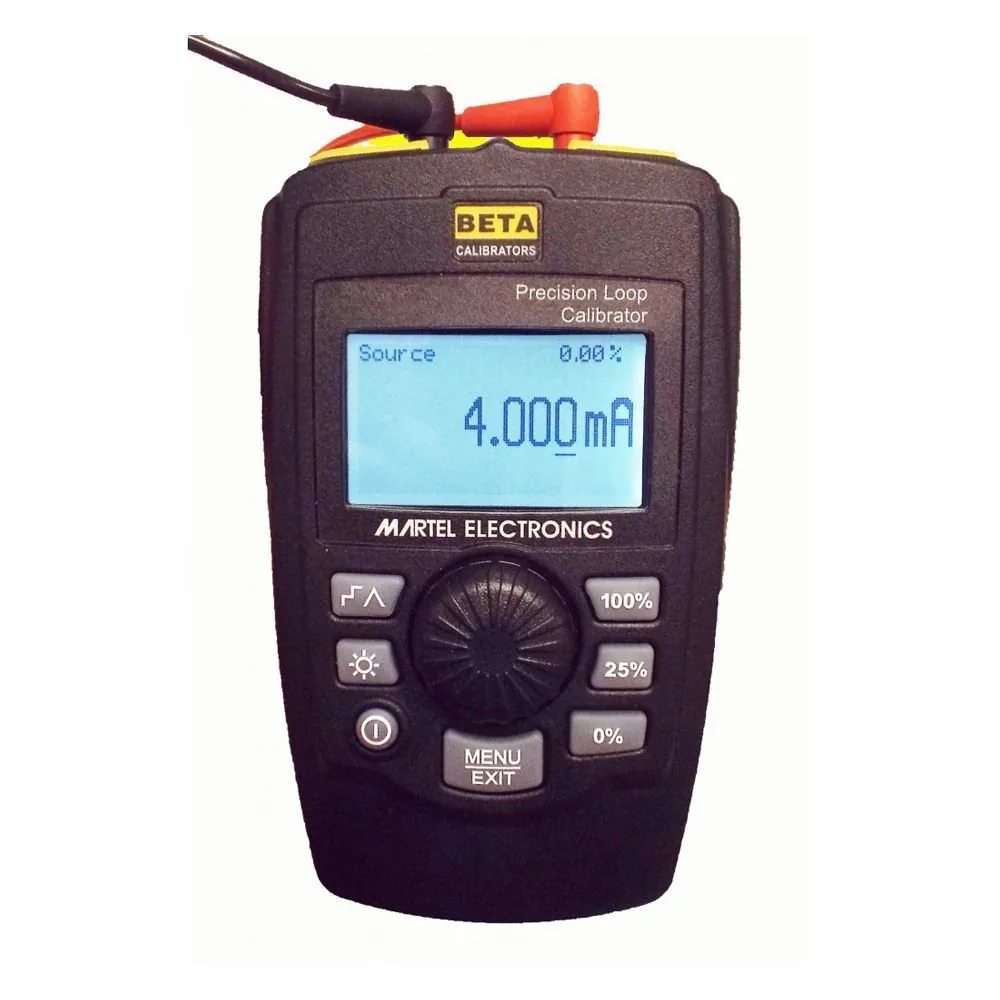

Martel Electronics LC-110 Loop Calibrator

Overview Martel Electronics LC-110 Loop Calibrator

Loop Calibrator

Features and Performance

- Functions: mA source, mA simulate, mA read, mA read/loop power,
- and volts read
- Ranges: mA (0 to 24mA) and Volts (0 to 30VDC)
- Resolution: 1uA on mA ranges and 1mV on voltage range
- Accuracy: 0.01% /- 2LSD all ranges (@23° /- 5°C)
- Operating Temp range: -10°C to 55°C
- Humidity range: 10 to 95% non-condensing
- Stability: 20ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
- Display: 128 x 64 pixels, LCD Graphic w/backlight, .34” high digits
- Power: 6AAA alkaline, lithium, or NiMH batteries

Why Choose This Product

The Martel Electronics LC-110 Loop Calibrator is a model-specific loop calibrator for calibration and test work.

Product Specifications

Feature Details

Functions mA source, mA simulate, mA read, mA read/loop power,

Ranges mA (0 to 24mA) and Volts (0 to 30VDC)

Resolution 1uA on mA ranges and 1mV on voltage range

Accuracy 0.01% /- 2LSD all ranges (@23° /- 5°C)

Operating Temp range -10°C to 55°C

Humidity range 10 to 95% non-condensing
