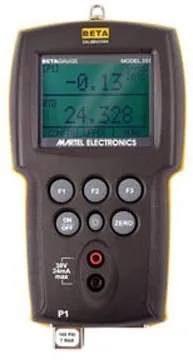

Martel Electronics 1919410 Pressure Calibrator

Overview Martel Electronics 1919410 Pressure Calibrator

Martel Electronics 1919410 Pressure Calibrator is a pressure calibrator from Martel Electronics. It supports pressure calibration tasks with an isolated pressure sensor, external pressure module connectivity, and switch test capability. The source data lists 5 PSI.

Features and Performance

- One Isolated Pressure Sensor
- External Pressure Module Connection Supports All BetaPort -P Pressure Modules (25 ranges)
- Internal 24 V DC Loop Power Supply
- Measure 24 mA or 30 VDC
- Large, Backlit, Configurable Display for 1, 2 or 3 Variables
- Switch Test on Pressure (internal or external)
- Five (5) Frequently Used Setups and be Stored and Recalled
- % Error and Damping Functions

Why Choose This Product

The isolated sensor, loop power support, and external module connection make the instrument relevant for pressure and process signal checks in one workflow. Compatibility information in the source data includes supports all BetaPort-P pressure modules. The supplied package includes Carrying Case, Test Leads, Instruction Manual, and 1 Set of AA Alkaline Batteries.

Product Specifications

Feature Details

Range 5 PSI

Compatibility Supports all BetaPort-P pressure modules

Display Large, Backlit, Configurable Display for 1, 2 or 3 Variables

Power Internal 24 V DC Loop Power Supply
