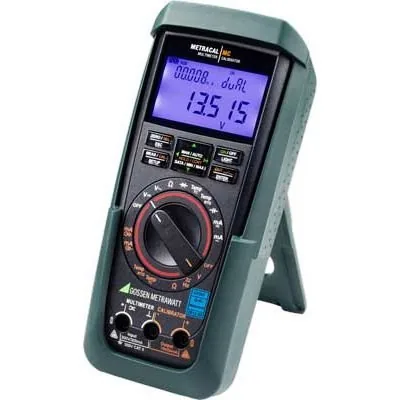

Gossen Metrawatt METRACAL MC Process Multimeter Calibrator

Overview Gossen Metrawatt METRACAL MC Process Multimeter Calibrator

Gossen Metrawatt METRACAL MC Process Multimeter Calibrator is a process multimeter calibrator from Gossen. It is selected by matching the listed model details and supported functions to the intended calibration or test workflow.

Features and Performance

- Universal calibrator, simulator and multimeter
- mA / mV… V / °C (Pt100/1000, Ni100/1000
- thermocouples: J, L, T, U, K, E, S, R, B, N) / 30 … 2000 Ω
- Dual mode ÁV simultaneous calibration and measurement (U / I)
- Measuring and encoding in absolute terms and as percentage (scaled)
- Memory for measurement results: 16 MBit
- Frequency and pulse run generators: 1 Hz to 2 kHz
- Ramp and staircase functions
- METRAwin µ90-2 interface and calibration software
- Transmitter simulator (sink: 0… 24 mA)
- DAkkS calibration certificate included
- Rugged, EMC compliant design
- Precision multimeter (V, A, Ω, F, Hz, °C / F)
- 30,000 (60,000) digits and triple display
- TRMS AC measurement to 1 kHz

Included items listed in the source data:

- 1 METRACAL MC calibrator with 2 batteries per IEC LR6
- 1 KS29 cable set, consisting of 3 measurement cables (1 black, 1 blue, 1 red) with angle plugs / safety plug, test probes and 3 safety caps
- 1 Abbreviated instructions
- 1 CD ROM with operating instructions in English and German, as well as other available languages
- 1 GH-XTRA rubber holster
- 1 DAkkS calibration certificate

Why Choose This Product

This product is best selected by matching the model code and listed functions to the intended calibration task. The source data is more useful for selection than broad category-level descriptions.

Product Specifications

Feature Details

thermocouples J, L, T, U, K, E, S, R, B, N) / 30 … 2000 Ω

Memory for measurement results 16 MBit

Frequency and pulse run generators 1 Hz to 2 kHz

Transmitter simulator (sink 0… 24 mA)
