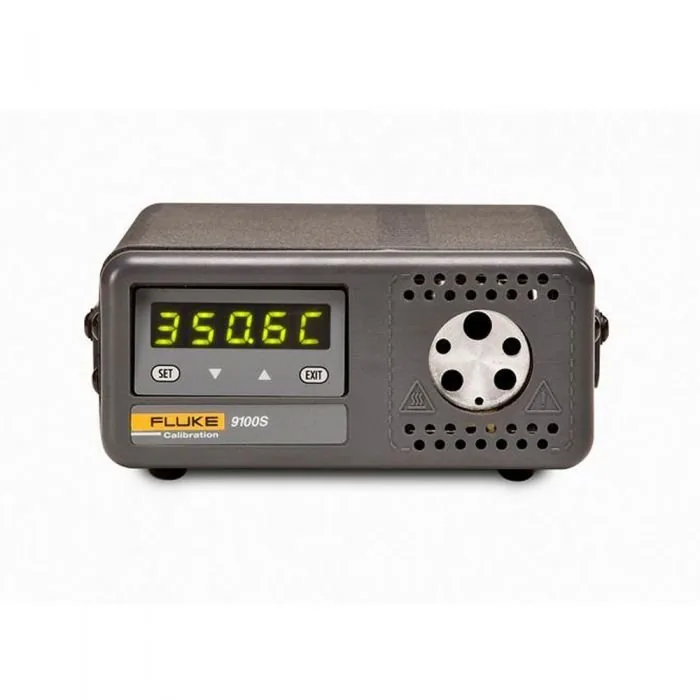

Fluke Calibration 9100S-C-156-TRAN Dry-Well Calibrator

Overview Fluke Calibration 9100S-C-156-TRAN Dry-Well Calibrator

Fluke Calibration 9100S-C-156-TRAN Dry-Well Calibrator is a dry-well calibrator from Fluke. The source data lists a stated range of 35°C to 375°C (95° to 707°F) and an accuracy value of 35° to 200°C ±0.5°C for this configuration.

Features and Performance

- Hart Model # 9100S-C
- Fixed Block Options: Size of these standard block options are: 1/2″, 3/16″
- Range: 35°C to 375°C (95° to 707°F)
- Accuracy: 35° to 200°C ±0.5°C
- 200 to 300°C ±1°C
- Stability: ±0.2°C at 50°C
- ±0.3°C at 300°C
- Well-to-Well Uniformity: ±0.2°C with sensors of sililar size at equal depths within wells
- Heating Times: 35°C to 300°C; 9.5 minutes
- Stabilization: 5 Minutes
- Cooling Times: 300°C to 100°C; 14 Minutes
- Well Depth: 4 Inches (102 mm)
- 1/16″ (1.6mm) hole is 3.5″ (89 mm) deep
- Size: 2.25″H x 4.9″W x 5.9″D (57 x 125 x 150 mm)
- Weight: 2lb. 3oz. (1 kg)
- NIST Certificiate data points taken at 50°, 100°C, 150°C, 200°

Included items

- Manufacturer’s NIST-Traceable Certificate
- Instructions

Why Choose This Product

This configuration is easier to evaluate for temperature calibration because the source data provides a defined block option and thermal performance figures.

The source listing also identifies included items, which helps confirm the supplied package.

Product Specifications

Feature Details

Range 35°C to 375°C (95° to 707°F)

Accuracy 35° to 200°C ±0.5°C

Fixed Block Options Size of these standard block options are: 1/2″, 3/16″

Stability ±0.2°C at 50°C
