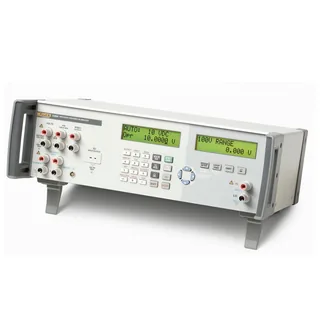

Fluke 7526A Precision Process Calibrator

Overview Fluke 7526A Precision Process Calibrator

The Fluke Calibration 7526A-156 Precision Process Calibrator delivers an ideal balance of accuracy, versatility, and value for benchtop calibration environments. Designed for instrument shops and calibration laboratories, the 7526A enables precise calibration of RTDs, thermocouples, pressure instruments, temperature transmitters, multimeters, data loggers, and digital process simulators —all from a single platform.

Positioned between handheld field calibrators and high-end multi-product systems, the 7526A is a “best-fit” solution for organizations that demand professional-level precision without unnecessary complexity or cost.

Features and Performance

- Multifunction Bench Calibrator – Measure and source voltage, current, resistance, RTDs, thermocouples, and pressure
- High Accuracy Performance – Supports demanding process calibration requirements

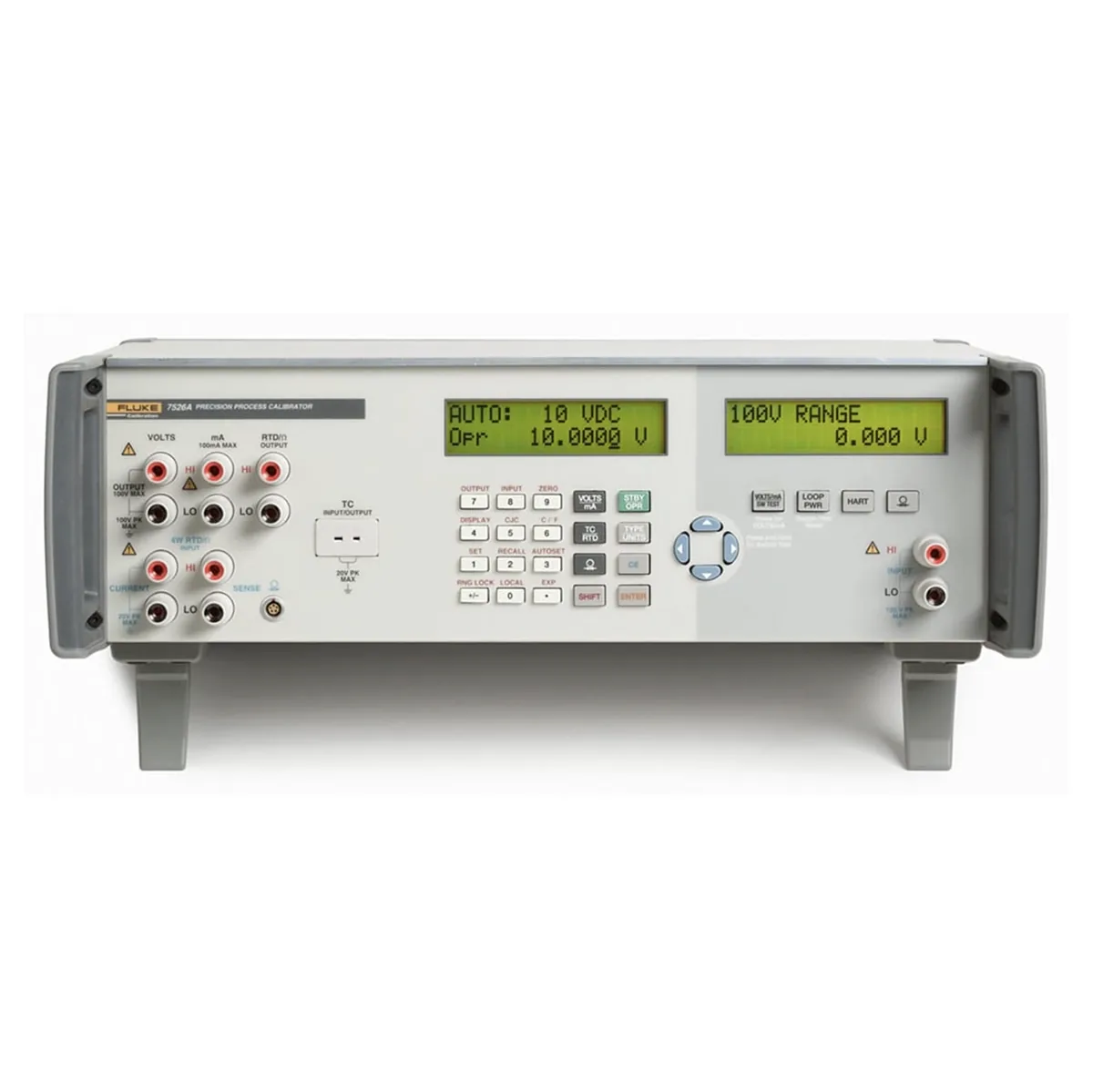

- Dual LCD Displays – View source and measurement values simultaneously
- RTD & Thermocouple Calibration – Supports a wide range of sensor types including SPRTs
- Integrated Loop Power – 24 V loop supply with built-in 250 Ω HART resistor
- Pressure Measurement & Control – Compatible with Fluke 700 series pressure modules
- Setpoint Storage – Store and recall up to nine setpoints per function
- Intuitive User Interface – Cursor keys, function keys, and numeric keypad for fast operation
- Flexible Units & Coefficients – Enter RTD/SPRT coefficients and switch units instantly

Automation & Calibration Software Integration

For higher throughput and automated workflows, the 7526A integrates seamlessly with MET/CAL® Plus Calibration Management Software.

- Automate calibration procedures
- Collect and report calibration results

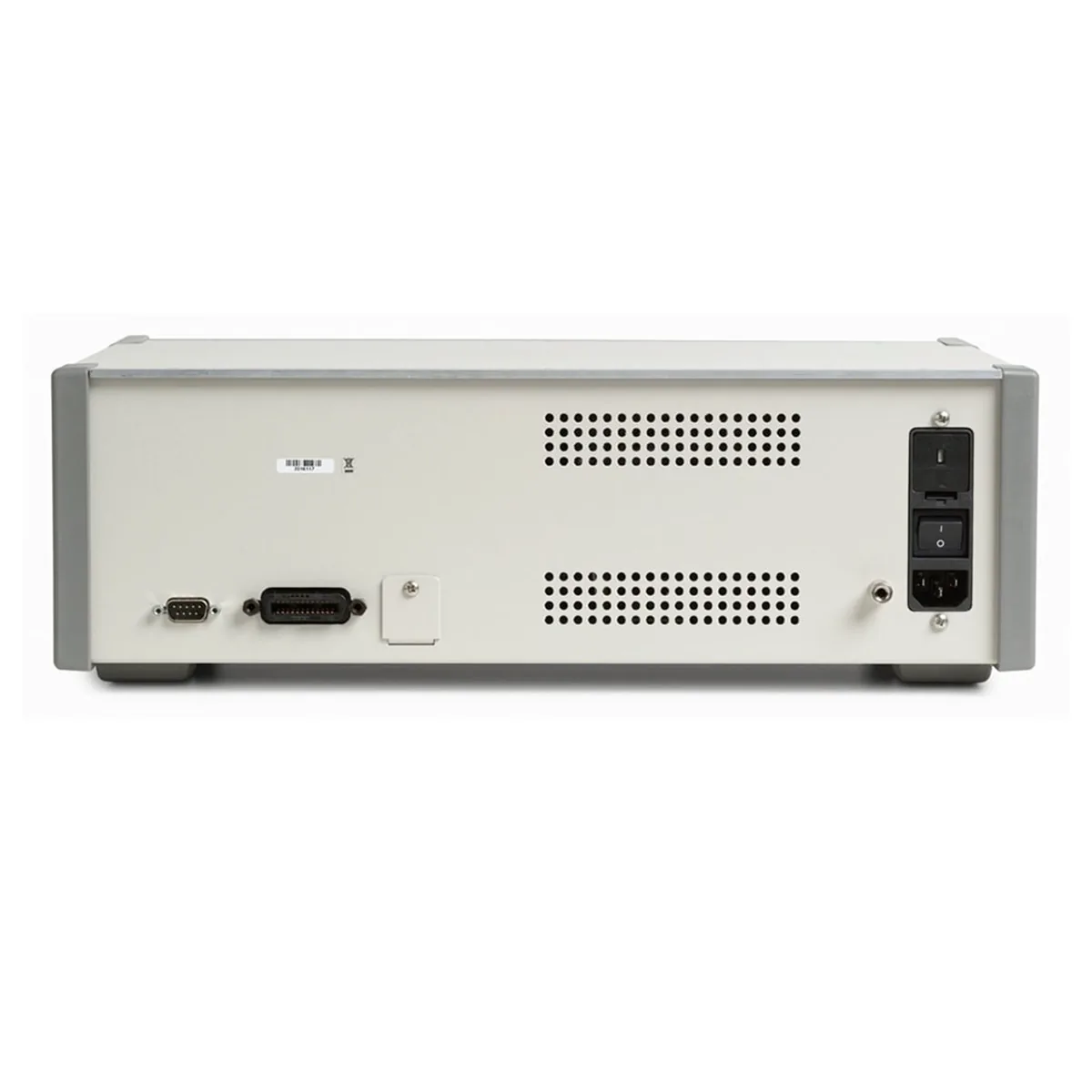

- Control the calibrator via RS-232 or GPIB (IEEE-488)
- USB-to-serial adapter included as standard

This makes the 7526A suitable for automated test systems (ATE) and regulated calibration environments.

Complete Temperature & Pressure Calibration Solution

Temperature sensor accuracy is critical—over 75% of temperature transmitter errors originate from sensors. The 7526A allows:

- Individual sensor calibration (RTD / thermocouple)
- System calibration when paired with Fluke Calibration 914X Field Metrology Wells
- Pressure sourcing and measurement when used with P5500 series test pumps and Fluke pressure modules

Why You Should Buy it

The Fluke Calibration 7526A is the smart choice for calibration labs and instrument shops that need bench-level precision, broad workload coverage, and automation readiness —without investing in a high-end multi-product calibrator.
