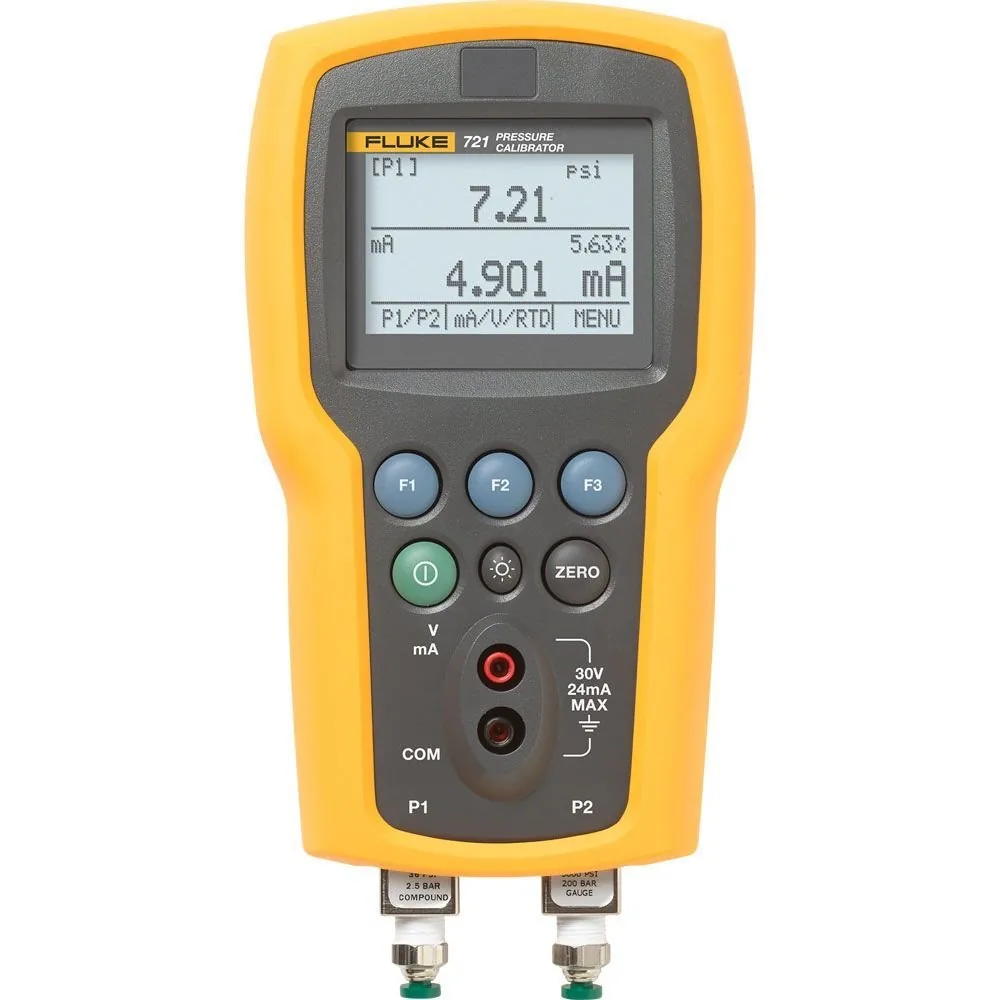

Fluke 721-3601 Dual Sensor Pressure Calibrator

Overview Fluke 721-3601 Dual Sensor Pressure Calibrator

Fluke 721-3601 Dual Sensor Pressure Calibrator is a dual sensor pressure calibrator from Fluke. The source data lists a stated range of 36PSIG and an accuracy value of 0.025% for this configuration. Ideal for gas flow calibration (custody transfer) applications.

Features and Performance

- Dual Sensor Pressure Calibrator 36PSIG/100PSIG
- Ideal for gas flow calibration (custody transfer) applications
- Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
- Pt100 RTD input for temperature measurement, (probe optional)
- Measures 4 to 20 mA signals
- Internal 24 V loop power supply can power a transmitter under test
- Measure up to 30 V dc, check 24 V loop power supplies
- Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
- Large backlit graphic display can display up to three inputs simultaneously
- Store five instrument setups for recall and use

Included items

- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads

Why Choose This Product

This dual sensor pressure calibrator is easier to assess when you need a specific calibration range and instrument format without relying on unsupported assumptions.

Ideal for gas flow calibration (custody transfer) applications.

Product Specifications

Feature Details

Range 36PSIG

Pressure range 36PSIG/100PSIG

Accuracy Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
