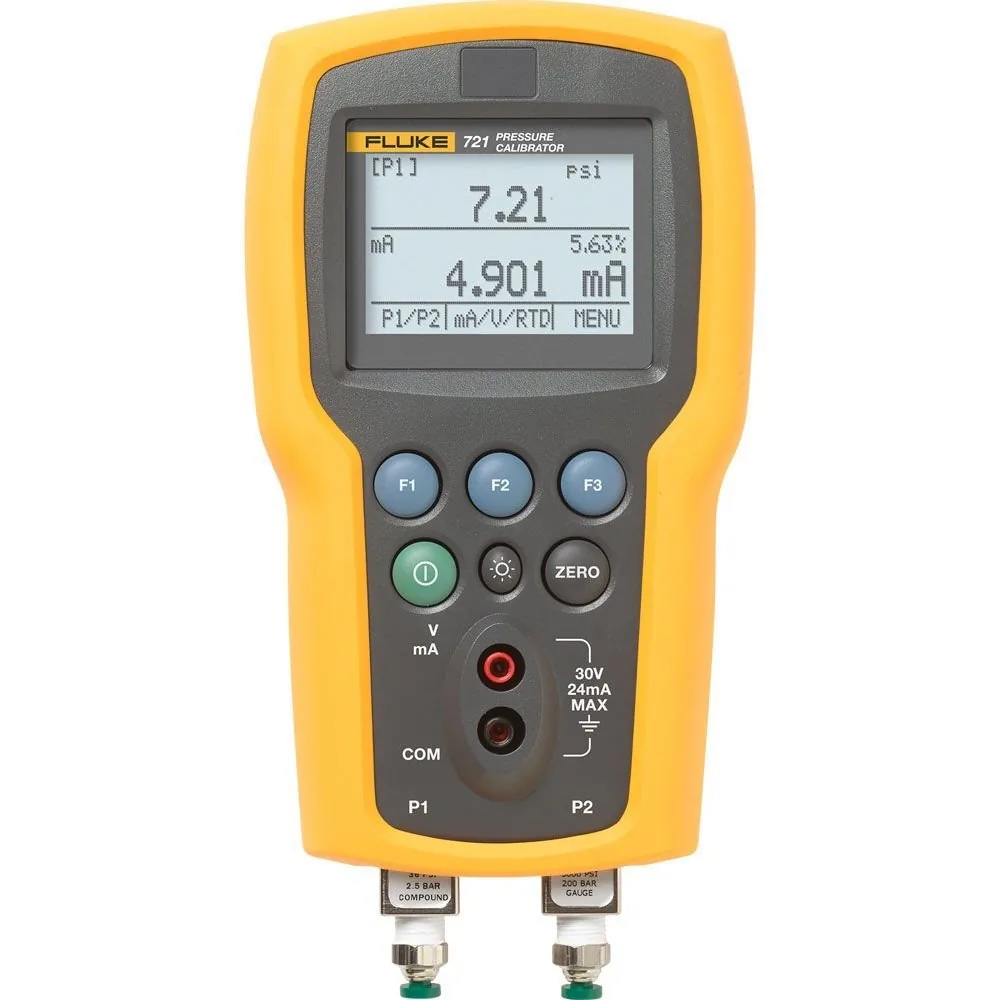

Fluke 721-1603 Dual Sensor Pressure Calibrator

Overview Fluke 721-1603 Dual Sensor Pressure Calibrator

Fluke 721-1603 Dual Sensor Pressure Calibrator is a dual sensor pressure calibrator from Fluke. The source data lists a stated range of 16PSIG and an accuracy value of 0.025% for this configuration. Ideal for gas flow calibration (custody transfer) applications.

Features and Performance

- The 721 can be configured by selecting 16 PSI (1.1 bar) low pressure sensor then add high pressure range of 300
- Ideal for gas flow calibration (custody transfer) applications
- Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
- Pt100 RTD input for temperature measurement, (probe optional)
- Measures 4 to 20 mA signals
- Internal 24 V loop power supply can power a transmitter under test
- Measure up to 30 V dc, check 24 V loop power supplies
- Extend pressure measurement range with connection to external 700 series pressure modules (29 ranges)
- Large backlit graphic display can display up to three inputs simultaneously
- Store five instrument setups for recall and use

Included items

- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads

Why Choose This Product

This dual sensor pressure calibrator is easier to assess when you need a specific calibration range and instrument format without relying on unsupported assumptions.

Ideal for gas flow calibration (custody transfer) applications.

Product Specifications

Feature Details

Range 16PSIG

Accuracy Two isolated, stainless steel, pressure sensors with 0.025 % accuracy
