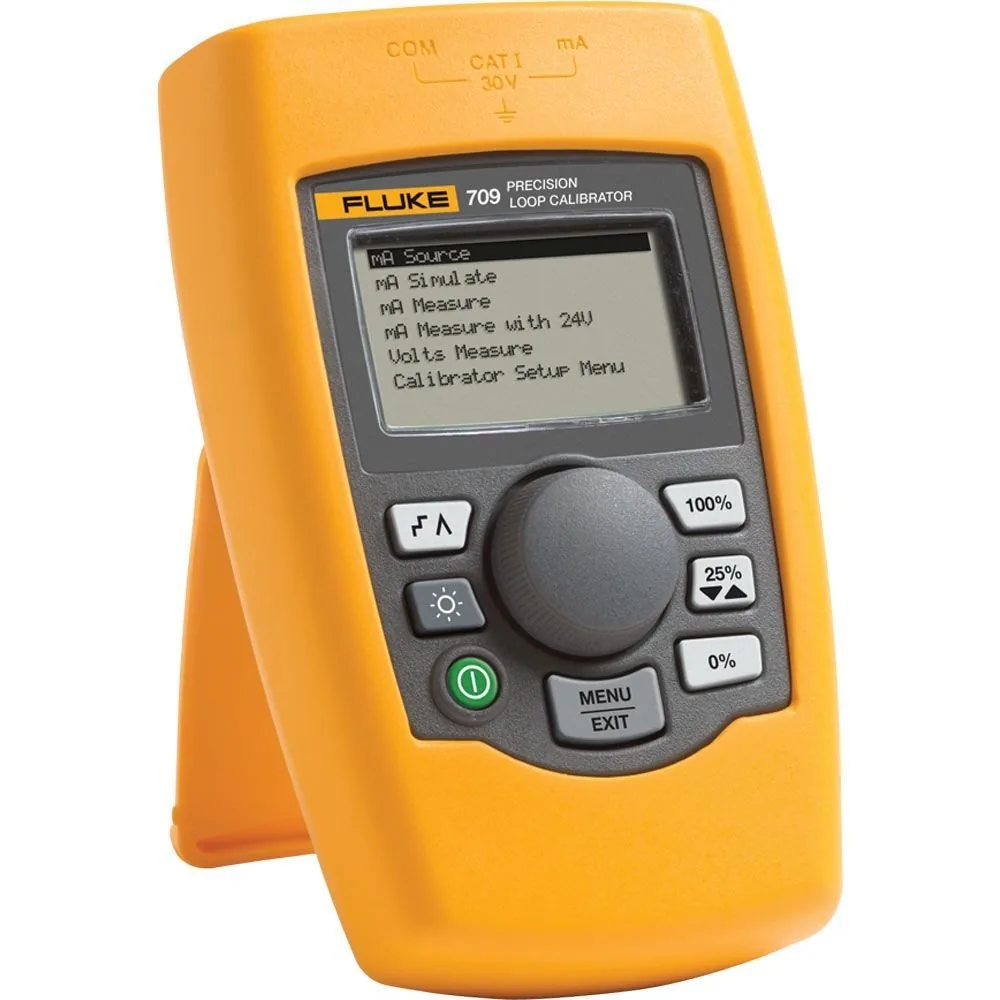

Fluke 709 Precision Current Loop Calibrator

Overview Fluke 709 Precision Current Loop Calibrator

Precision Current Loop Calibrator

Features and Performance

- Best-in-class accuracy at 0.01% reading
- Small rugged design operates on (6) standard AAA batteries
- Intuitive user interface with Quick-Set knob for fast setup, easy use
- Built in selectable 250Ω resistor for HART communication
- 24 V DC loop power with mA Measure Mode (-25% to 125%)
- Resolution of 1 µA on mA ranges and 1 mV on voltages ranges
- Simple two wire connection for all measurements
- Auto Shutdown to conserve battery life (adjustable up to 30 minutes)
- Variable step & ramp time in seconds
- Adjustable span selection (0 to 20 mA or 4 to 20 mA)

Why Choose This Product

The Fluke 709 Precision Current Loop Calibrator is a model-specific current loop calibrator for calibration and test work.
