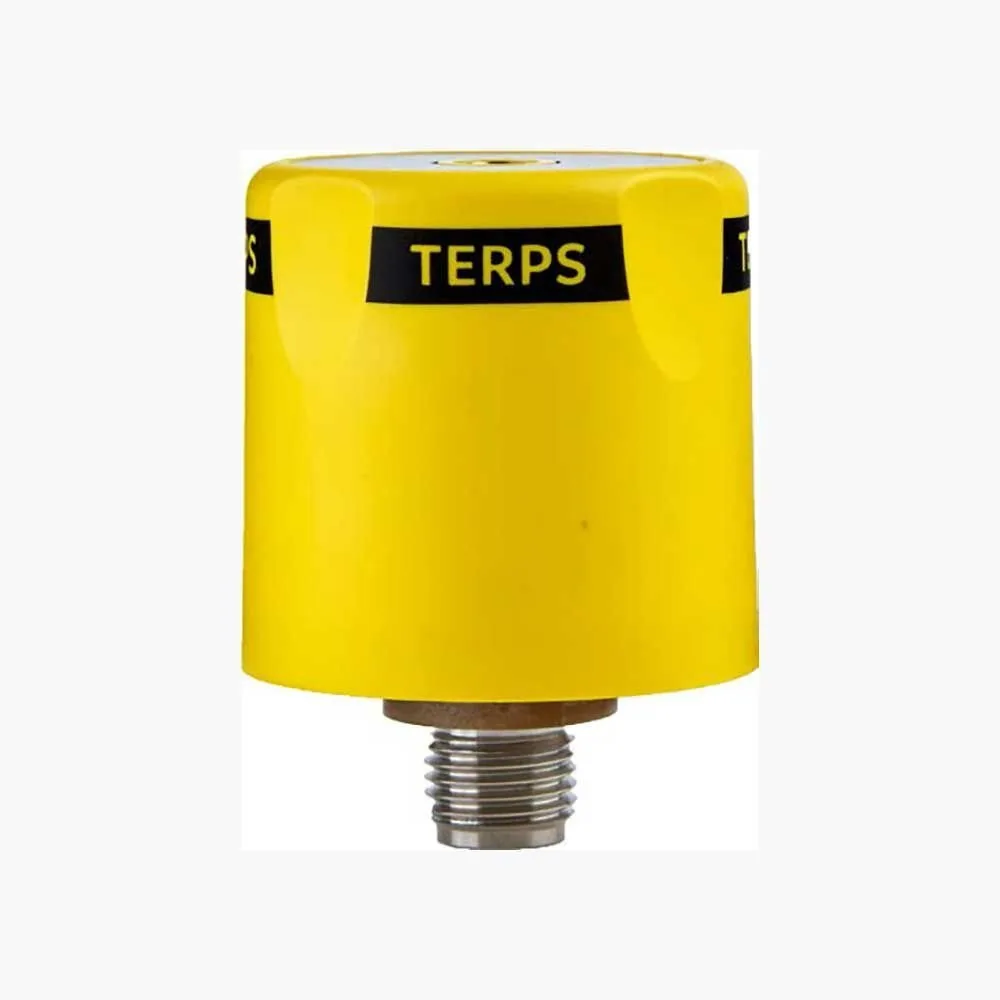

Druck PM620TS-17PSIA TERPS IS Pressure Module

Overview Druck PM620TS-17PSIA TERPS IS Pressure Module

Druck PM620TS-17PSIA TERPS IS Pressure Module is a terps is pressure module from Druck. The source data lists a stated range of 0 to 17psi absolute and an accuracy value of 0.0125% for this configuration.

Features and Performance

- Total uncertainty from 0.0125% FS
- Temperature compensated accuracy from -10°C to 50°C (-14°F to 122°F)
- Simple screw fit – hand tight no tools required
- Ranges from 1.2 bar to 100 bar (17.5 psi to 1500 psi)

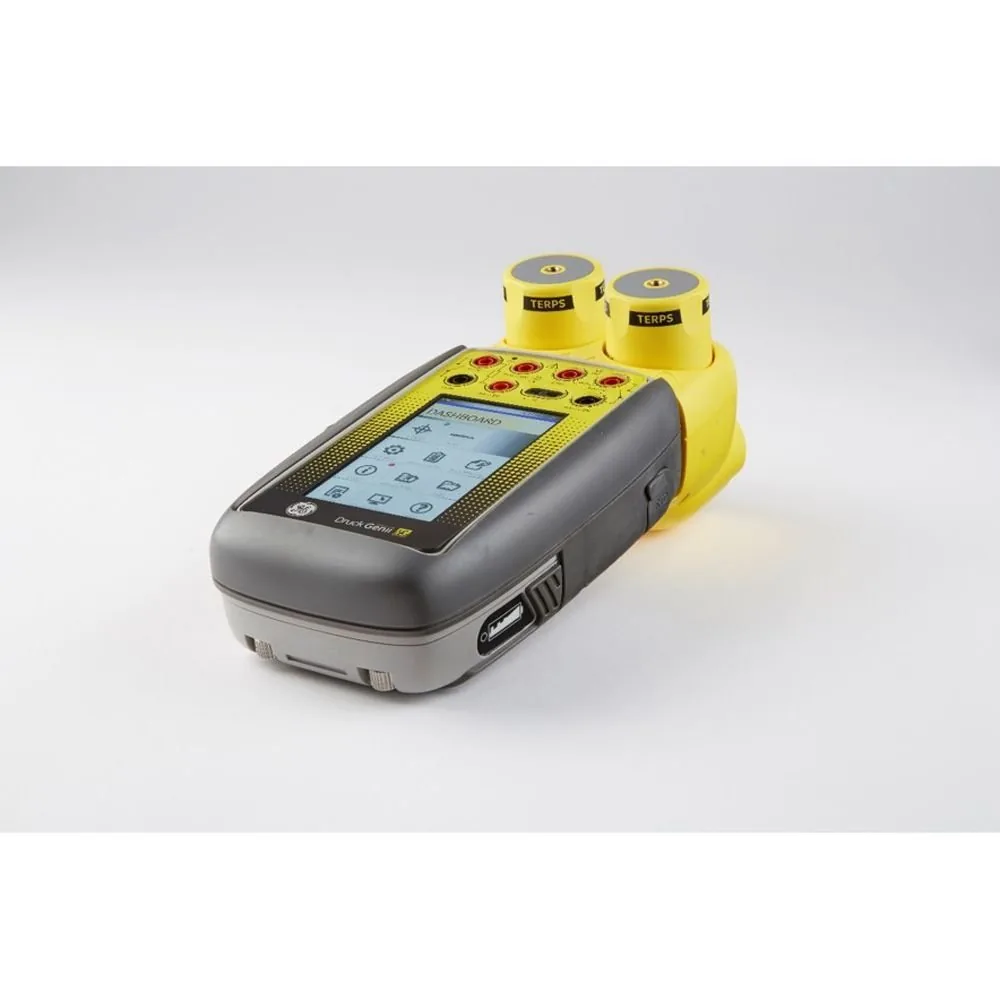

- Compatibility with pressure calibrators such as DPI612 and DPI620G/DPI620G-IS series
- Safe and Hazardous area versions available
- Fully interchangeable with no need for set-up or calibration
- Portable and easy to use: Technology that delivers Laboratory level accuracy of pressure measurement in the field
- Minimize downtime: Time is of the essence during an outage and the TERPS PM enables you to cover more ranges with one TERPS PM due to accuracy level
- Save money: Four times better long-term stability than current sensors on the market, less drift can facilitate longer calibration intervals as assets remain within tolerances for longer
- Maximize up time: Increase up time with our interchangeable TERPS PM no need for set up or calibration

Why Choose This Product

This module format is useful when the required pressure function is handled through a separate interchangeable module.

The published product data includes clear range information (0 to 17psi absolute) and accuracy information (Total uncertainty from 0.0125% FS).

Product Specifications

Feature Details

Range 0 to 17psi absolute

Range Ranges from 1.2 bar to 100 bar (17.5 psi to 1500 psi)

Accuracy Total uncertainty from 0.0125% FS

Pressure type Absolute
