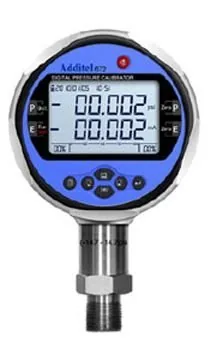

Additel ADT672-10-GP36K-PSI-AF Digital Pressure Calibrator

Overview Additel ADT672-10-GP36K-PSI-AF Digital Pressure Calibrator

Additel ADT672-10-GP36K-PSI-AF Digital Pressure Calibrator is a digital pressure calibrator configured for 36000 psi, Aclave 1/4HP female.

It supports pressure calibration work with functions such as electrical measurement, pressure switch testing, and data logging based on the supplied product highlights.

Features and Performance

- Pressure ranges to 36,000 psi (2500 bar)
- Measure mA or V with 0.02% RD 0.003%FS accuracy
- Power transmitters during test using 24V loop supply
- Pressure switch test
- Hart Communication capability
- Advanced temperature compensation
- Dual readout
- Min/Max/Hold to capture changing measurements
- Data logging
- Large, easy to read display with 6-digit resolution
- Back lighted display
- Rechargeable battery or AC adapter
- NIST traceable calibration

Why Choose This Product

This configuration is suitable for handheld pressure calibration workflows where pressure measurement needs to be combined with electrical test capability and field-ready operation.

Included accessories support initial setup and routine use.

Each unit includes:

- 110V/220V External Power Adapter (DC 10V)
- 2 Pieces 1.5 meter test leads
- 2 Pieces 0.156 inch test hose (for differential pressure gauge only)

Product Specifications

Range / configuration 36000 psi

Connection Aclave 1/4HP female
