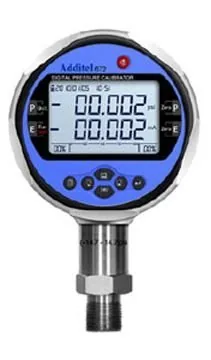

Additel ADT672-10-AP15-BAR-N Digital Pressure Calibrator

Overview Additel ADT672-10-AP15-BAR-N Digital Pressure Calibrator

Additel ADT672-10-AP15-BAR-N Digital Pressure Calibrator is a digital pressure calibrator from Additel. The source data lists a stated range of 1 bar, a 1/4NPTM connection, and an accuracy value of 0.02% for this configuration.

Features and Performance

- Pressure measurement uncertainty: ADT 672-02: 0.025%FS, ADT 672-05: 0.05%FS
- Pressure ranges to 36,000 psi (2500 bar)
- Measure mA or V with 0.02% RD 0.003%FS accuracy
- Power transmitters during test using 24V loop supply
- Pressure switch test
- Hart Communication capability
- Advanced temperature compensation
- Dual readout
- Min/Max/Hold to capture changing measurements
- Data logging
- Large, easy to read display with 6-digit resolution
- Back lighted display
- Rechargeable battery or AC adapter
- NIST traceable calibration

Included items

- 110V/220V External Power Adapter (DC 10V)
- 2 Pieces 1.5 meter test leads
- 2 Pieces 0.156 inch test hose (for differential pressure gauge only)

Why Choose This Product

This digital pressure calibrator is easier to assess when you need a specific calibration range and instrument format without relying on unsupported assumptions.

The source listing also identifies included items, which helps confirm the supplied package.

Product Specifications

Feature Details

Range 1 bar

Range Pressure ranges to 36,000 psi (2500 bar)

Connection 1/4NPTM

Accuracy Measure mA or V with 0.02% RD 0.003%FS accuracy

Pressure type Absolute
