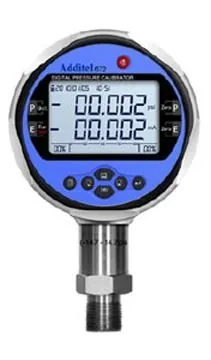

Additel ADT672-10-AP10-PSI-N Digital Pressure Calibrator

Overview Additel ADT672-10-AP10-PSI-N Digital Pressure Calibrator

Additel ADT672-10-AP10-PSI-N Digital Pressure Calibrator is a digital pressure calibrator from Additel. The source data lists a stated range of 10 psi, a 1/4NPTM connection, and an accuracy value of 0.02% for this configuration.

Features and Performance

- Pressure measurement uncertainty: ADT 672-02: 0.025%FS, ADT 672-05: 0.05%FS
- Pressure ranges to 36,000 psi (2500 bar)
- Measure mA or V with 0.02% RD 0.003%FS accuracy
- Power transmitters during test using 24V loop supply
- Pressure switch test
- Hart Communication capability
- Advanced temperature compensation
- Dual readout
- Min/Max/Hold to capture changing measurements
- Data logging
- Large, easy to read display with 6-digit resolution
- Back lighted display
- Rechargeable battery or AC adapter
- NIST traceable calibration

Included items

- 110V/220V External Power Adapter (DC 10V)
- 2 Pieces 1.5 meter test leads
- 2 Pieces 0.156 inch test hose (for differential pressure gauge only)

Why Choose This Product

This digital pressure calibrator is easier to assess when you need a specific calibration range and instrument format without relying on unsupported assumptions.

The source listing also identifies included items, which helps confirm the supplied package.

Product Specifications

Feature Details

Range 10 psi

Range Pressure ranges to 36,000 psi (2500 bar)

Connection 1/4NPTM

Accuracy Measure mA or V with 0.02% RD 0.003%FS accuracy

Pressure type Absolute
