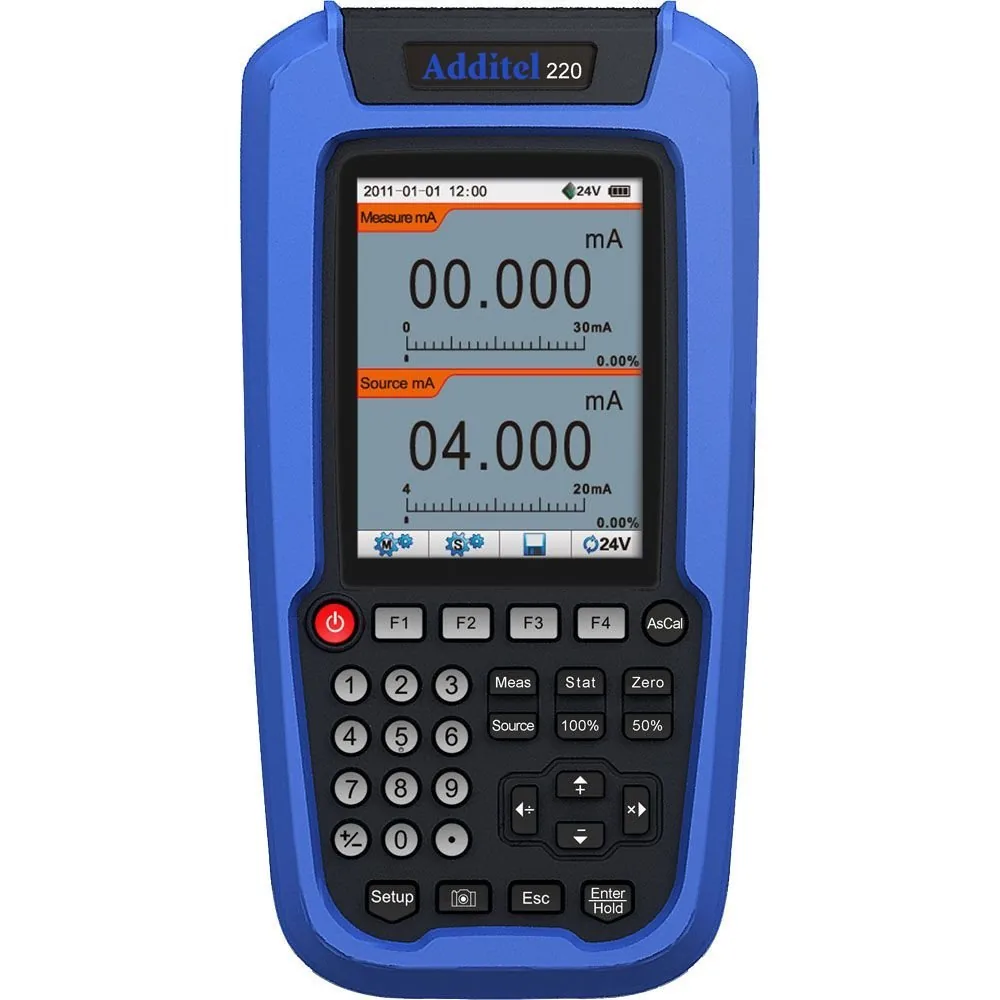

Additel ADT220 Multifunction Loop Calibrator

Overview Additel ADT220 Multifunction Loop Calibrator

Additel ADT220 Multifunction Loop Calibrator is a multifunction loop calibrator for loop calibration and signal testing. Available product data highlights gauge span examination.

Features and Performance

- Measures loop current up to 30mA with 0.1µA resolutionü
- Measures voltage signals up to 60 V, and mV signals up to 300 mV
- Sources loop current, mV and V
- 24V loop power supply with simultaneous current measurement
- Simultaneous dual reading capability
- Capture switch
- Display max, min, peak-to-peak, average, and percentage simultaneously
- Convert data to a real physical value through re-scaling function
- High-capacity storage with up to twenty thousand records
- On-line view, index, analyze, auto-curve, and list the data

Why Choose This Product

This model fits workflows where the documented multifunction loop calibrator format matches the required calibration setup. The available specifications focus on measures loop current up to 30mA with 0.1µA resolutionü.

Product Specifications

Feature Details

Power 24V loop power supply with simultaneous current measurement

Display Display max, min, peak-to-peak, average, and percentage simultaneously

Four on-site calibration tools preset loop indicator, sensor/transmitter, signal isolator/converter, and limit alarm/switch

Display 4, 5, or 6 digits adjustable display

Power Measuring, sourcing and loop power circuits are electrically isolated each other

Power 110V/220V External Power Adapter
