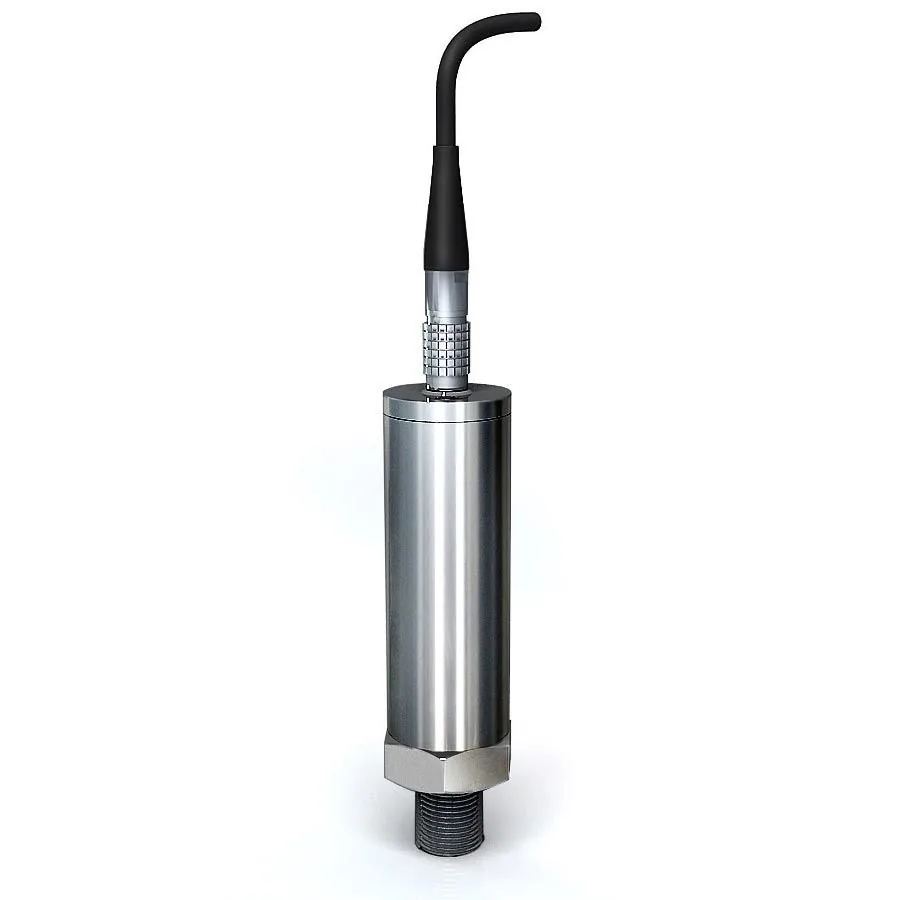

Additel ADT160A-02-V15-PSI-N Digital Pressure Module, -15 to 0 PSIG

Overview Additel ADT160A-02-V15-PSI-N Digital Pressure Module, -15 to 0 PSIG

With advanced microprocessor technology and state-of-the-art silicon pressure sensors, the Additel 160 series Intelligent Digital Pressure Module (IDPM) provides an accurate, reliable, and economic solution for wide range of pressure applications. In order to reach the best performance, every silicon pressure sensor in the module has been specially aged, tested and screened before assembly.

Features and Performance

- Gauge pressure measurement accuracy of 0.02% FS
- Absolute Pressure measurement accuracy of 0.1% FS
- Pressure ranges to 10,000 psi (700 bar)
- Advanced temperature compensation
- NIST traceable calibration and data included

Why Choose This Product

This module is designed as external pressure module for Additel 761 automated pressure calibrator and Additel 222A, Additel 223A and Additel 761 calibrators.

Product Specifications

Feature Details

Range -15 to 0 PSIG

Connection 1/4″ NPT male

Accuracy 0.02%FS
